NEMA4 Wireless Control Kit
|
 |
 |
|
Transmitter and Receiver |
|
Description |
|
|
|
SPECIFICATIONS and
Applications |
|
Portable
Transmitter & Base Receiver
•
Range ( 5 km )
3 Miles
• Operation: 120/240VAC
or 12VDC
•
Transmitter Handheld multichannel
•
Multiple
Transmitters and Receivers
• Relay Output SPDT, 10A Class 2 pilot duty
Output mode selection; Pulse, or Latch
Optional Output OFF / ON Delay,
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 150 - 160MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
Not limited to
line-of-sight communication
|

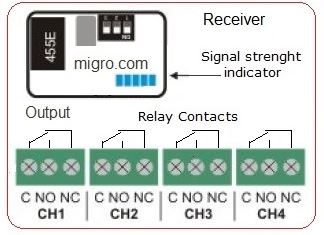

4 Channel Receiver Wiring 916004 |

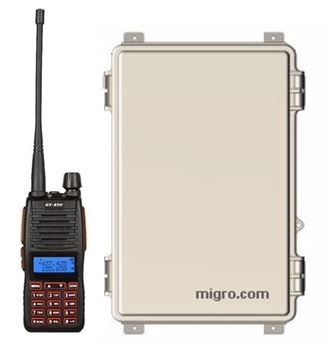

Package include: (1)
916022 Handheld Transmitter,
(1) One Base Receiver
(1)
Omni Antenna with 12ft coaxial
(1) NEMA4 (IP65) Fiber enclosure &
Instructions
Please
request a quotation
|
|
|
|
|

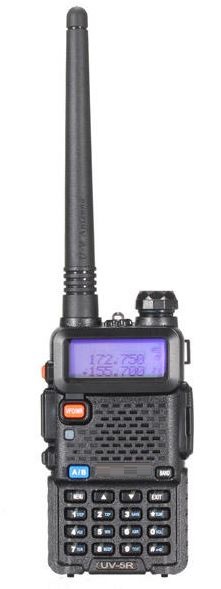

916022 |

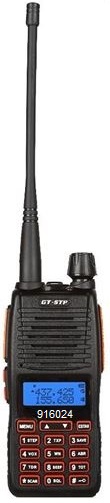

916024 |
|
|
Additional Handheld Transmitter
■ High strength PC material frame,
PTT button and keypad
128 Memory code in different frequency, each Control up to
8 channels.
professional transceiver with
dual-band, dual-display
|
General Specifications |
|
Part Number |
916022 |
916024 |
|
Frequency Range |
136-174MHZ and 400-520MHZ |
136-174MHZ and 400-520MHZ |
|
Codes No. |
128 memory |
128 memory |
|
Range KM |
3KM |
10KM |
|
Output Power |
5W/1W |
8W/5W/1W |
|
Antenna Impedance |
50 ohm |
50 ohm |
|
Operating Voltage |
DC 7.4V rechargeable battery |
DC 7.4V rechargeable battery |
|
Mode of operation |
Simple or semi-duplex |
Simple or semi-duplex |
|
Antenna |
SMA -Female 12 CM |
SMA -Female 18 CM |
|
Keypad code: |
Control up to 8 separate channels |
Control up to 8 separate channels |
|
Dimension |
(HxWxD)
100 x 60 x 35 mm (#) |
132 x 60 x 35 mm (#) |
|
Weight |
238g (including battery, antenna) |
244g (including battery, antenna) |
|
Power adapter |
Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA |
Input: AC100-240V, 50-60Hz;
Output: DC10V/500mA |
(#) Without antenna dimension
|
|
|
|
Applications
 |
|
 |
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
-
Radio Installations shall be
performed by a certified professional.
|
|
