10
Function Programmable Time Delay Relay,
DIN Rail Mount, 0.1 Seconds to 10 Days, 15A SPDT,
Universal Coil Voltage 12 - 240 VAC/VDC, with LED

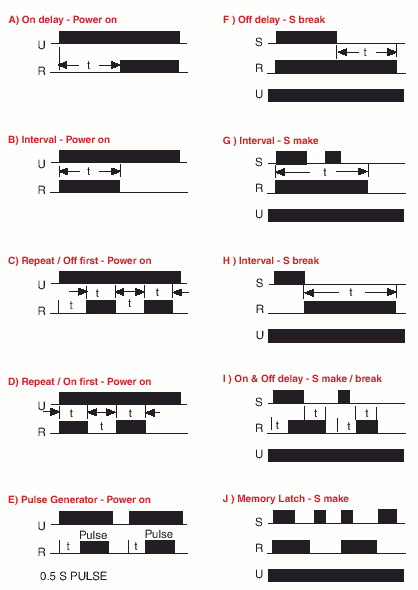

10 knob selectable functions:
- ON delay

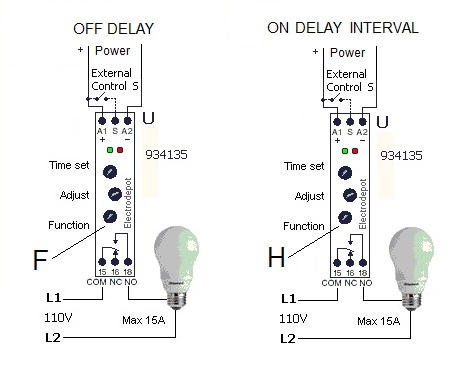

- OFF delay
- Interval on trigger open
- Single shot on power ON
- Double interval
- Delay on release
- Symmetrical recycler ON first or OFF first

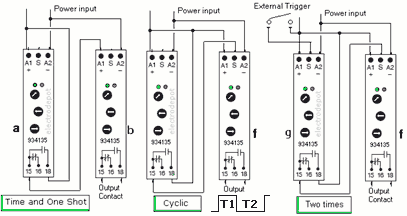

- Special functions latch and single shot Automatic or manual start Repeatability:
≤0.2%
LED indication time status and
power supply
Operating Voltage:
12 to 240 VAC or VDC
Start Switch Closure Time: 20 milliseconds
minimum
Power Consumption:
0.7 to 3VA. AC, 0.5
to 1.7 W. DC
Output
Type: Relay Contacts, S.P.D.T.
Rating: 10 A. max. resistive 240 volts A.C
100 mA at 5 VDC min. load current
DIN
mount space saving
Environmental
Storage Temperature: -23°C to 70°C,
Operating Temperature: -20°C to 60°C
