| Model: 934190 |
 11 pin DIN
Socket optional
|
H3CA-A |
H3CAA Solid State timer-0.1s-9990h
Multifunction Digital Timer - Coil
Voltage 24-240 VAC or 12-240 VDC -
Contact Form SPDT - Contact Current
Rating Resistive 3 Amps - Maximum
Time Range 9990 Hours - Minimum Time
Range 0.1 Second - Pins 11
-
·
field-selectable operation modes
-
· Universal
AC/DC supply voltage timers
available
-
· Operations
include ON-delay, Repeat cycle,
Signal Interval/OFF-delay,
Signal-OFF delay (I and II),
Interval, Cycle and Signal
ON-delay/OFF-delay
-
· Selectable

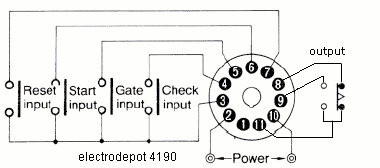

no-voltage start, reset, gate
and check inputs expand
capabilities
-
· Timer
remaining LCD bar graph and LCD
output status indicator
-
Panel mounting adapters, sockets, and
accessories may be ordered
separately
|
| |
Current, Ratings |
3 A @250 VAC SPDT (no
motor load) |
| |
Display Type |
LCD |
| |
Mounting Type |
Panel, Track⁄Surface 48 x 48
mm |
| |
Temperature, Operating |
Maximum
55 °C ,
Minimum
-10 °C
|
| |
Timing Function
|
On Delay, Off Delay 1, Off Delay 2,
Interval Delay, Cycle One-shot,
Repeat Cycle Equal On/Off Time,
Signal Interval/Off Delay, Signal On
Delay/Off Delay |
| |
Voltage, Power Rating |
12 /24 VDC 110/220VAC , 1.5W |
| |
Timer Type, Size |
Solid State
IP54, 1/16 DIN 48 x 48 mm |
| |
Timing Range |
0.1 Sec. to 9990 hrs |
| |
Termination
1⁄16
DIN |
11-Pin Round Socket |
|
|
|
