Wireless supervised controller applications:  Pumps, level control, monitoring, lighting

Performance    2 Miles ( 3 km )   Optional extended range up to 10 Miles (16Km)

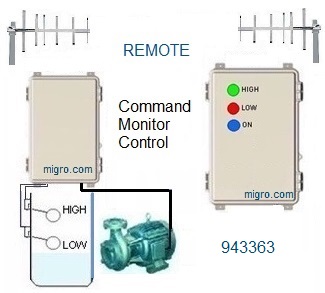

938501 Command Center

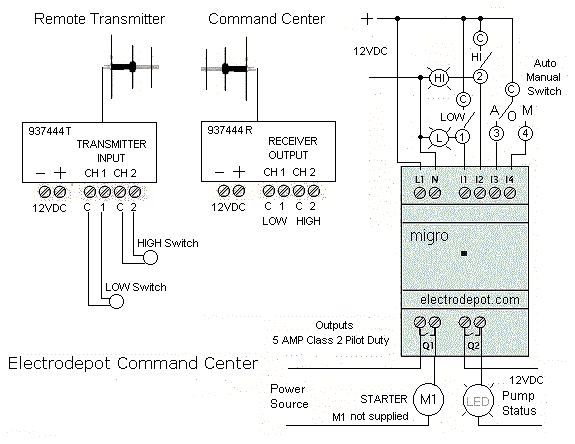

 Wiring Diagram

Command operation, Manual or Automatic

Manual: Pump manually controlled by the operator

Automatic: The tank level sensor provides the low
 or high status to start or stop the operation.

Blue light indicates the pump status
Red light indicates the tank level is low
Green light indicates the tank level is high



433MHz Antenna Selection Mechanical Float Sw

OPTIONAL  Solar Powered Transmitter  Base System

938521  Transmitter panel size 18 x 16 x 10 inches
Incorporates in the  NEMA 4 enclosure with space for a deep cycle battery for up to 100 Ah  (Battery not supplied)
Optional Yellow light indicates low battery (solar)
  Repeater for extended range or obstacles

        Please request  for price


Operating Voltage: 12 VDC
Operating Temperature: -4 to +140 F (-20 to +60 C)
Number of Codes: 4096 codes, DIP switch programming
Carrier Frequency 433 MHz, 16 BIT Digital
Current Transmitter Standby 70mA, transmitting  400mA
Current  Receiver Standby 70mA, operation, 400 mA
Data Input TX  Dry contact   N/O:  normally open
Relay Output 6 Amp, 250VAC SPDT, NO/NC pilot duty class 2
Antenna Impedance 50 Ohms, Antenna optional Yagi or Omni
RF Power per FCC Part 15.249,  50mV/m @ 3m
Dimension (*) 14.00 x 10.00 x 6. in. (360 x 250 x 160 mm)
Enclosure rating NEMA 4,  IP65   waterproof
Compliance FCC CFR part 15.247 ISM
   (*) Final product dimensions may vary

 DISCLAIMER:    Contact a licensed professional for your project.   Warning: Radio control equipment is not to be used in life safety
