Programmable
controllers and automation.
|
PLC 12 I/O Smart programmable controller
NOTE 120/220Vac version do not include analog inputs |
SG212HRD24 24VDC Powered, 6 DC
Inputs, 2 Analog Inputs,
4 Relay Outputs
expandable up to 56 I/O,
The SG2-12HR-D features a 4x16 character LCD screen and keypad for operator
feedback and control

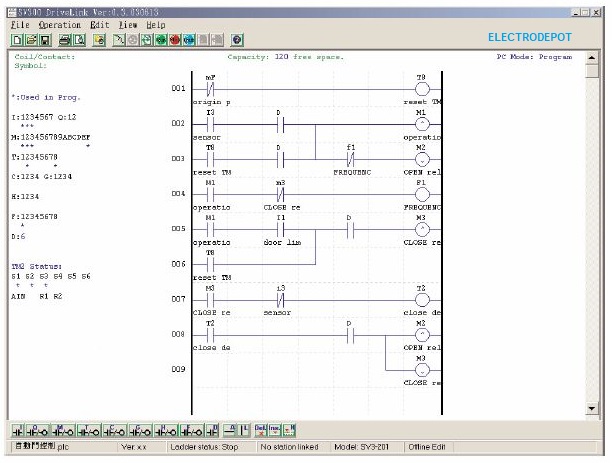

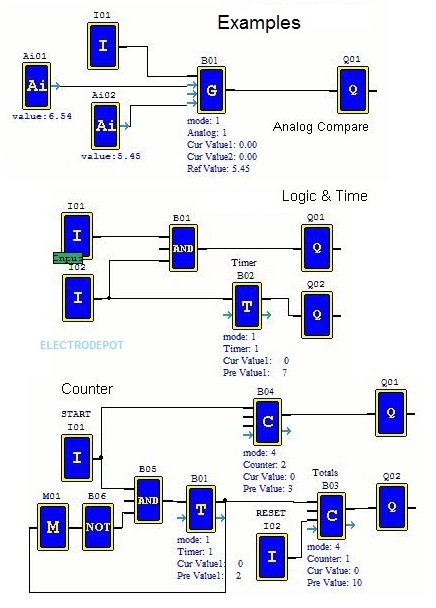

Programming can be in either Ladder Logic or Function Block. (*)
The programming software SG2 Client runs on Windows
A programming cable interface part number SG2USB is required (see below)
Specifications:
|
Power: |
20.4~28.8 VDC 100mA |
|
Digital Inputs: |
6 Inputs, OFF <5VDC, ON>15VDC |
|
Digital Outputs: |
4 Relay outputs 8 Amp |
|
Output Rating: |
265VAC / 30VDC Relay Outputs, 8A Resistive Load |
|
Analog Inputs: |
2 Analog 0-10VDC 10bit resolution |
|
Expansion: |
Options up to 56 I/O |
|
LCD Display: |
4 line, 16 character |
|
Keypad: |
8 Programming Keys |
|
Program Memory: |
300 Lines or 260 Function Blocks |
|
Program Storage: |
Retentive Flash Memory |
|

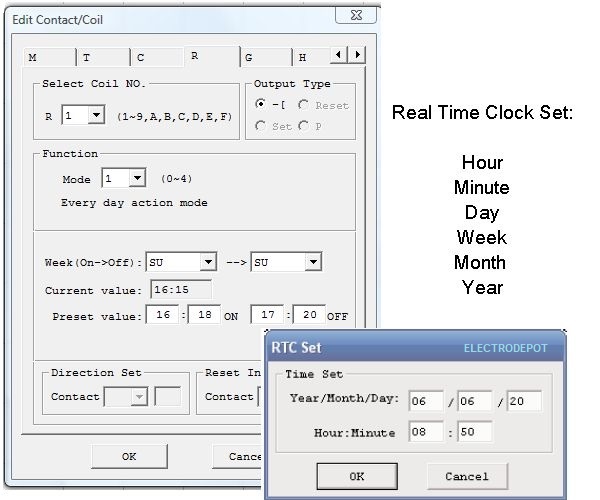

Real Time Clock: |
Built In - Daylight Saving Feature |
|
Timers: |
31 (0.01Sec ~ 9999 min) |
|
Power Drain: |
150mA @12V, 90mA @24V |
|
Approvals: |
UL / cUL / CE |
|
Warranty: |
1 Year |
(*)
Each PLC includes: Instructions to Download the latest
Programming
software version and manuals. |
Applications:
-
Industrial automation
-
Traffic control
management
-
Intelligent pump controllers
-
Greenhouses and agricultural machinery
-
Building, Home automation
-
Utility & special-purpose vehicles
-
Heating, air-conditioning and ventilation
-
Lighting systems and time schedule
-
Alarm and security systems
-
Packing machines
-
Outdoor control
applications
-
Generator control &
maintenance
SG2USB Programming Interface
|
|

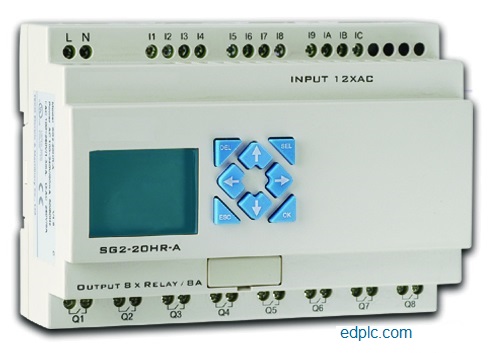

PLC 20 I/O Smart programmable controller
NOTE 120/220Vac version do not include analog inputs |
SG220HRD24 8 DC
Inputs, 4 Analog Inputs, 8 Relay Outputs expandable up to 56 I/O,
Specifications:
|
Power: |
20.4~28.8 VDC 100mA |
|
Digital Inputs: |
12 Inputs, OFF <5VDC, ON>15VDC |
|
Digital Outputs: |
8 Relay outputs 8 Amp |
|
Output Rating: |
265VAC / 30VDC Relay Outputs, 8A Resistive Load |
Analog Inputs:
4 inputs can be used as Analog 0-10VDC 10bit
|
Expansion: |
Options up to 56 I/O |
|
LCD Display: |
4 line, 16 character |
|
Keypad: |
8 Programming Keys |
|
Program Memory: |
300 Lines or 260 Function Blocks |
|
Program Storage: |
Retentive Flash Memory |
|
Real Time Clock: |
Built In - Daylight Saving Feature |
|
Timers: |
31 (0.01Sec ~ 9999 min) |
|
Power Drain |
150mA @12V, or 24V |
|
Approvals: |
UL / cUL / CE |
|
Warranty: |
1 Year |
(*)
Each PLC includes: Instructions to Download the latest
Programming
software version and manuals.
Optional Analog inputs,
Analog Outputs, PT100
I/O Expansion Modules: By
request
|
Applications:
-
Industrial automation
-
Traffic control
management
-
Intelligent pump controllers
-
Greenhouses and agricultural machinery
-
Building, Home automation
-
Utility & special-purpose vehicles
-
Heating, air-conditioning and ventilation
-
Lighting systems and time schedule
-
Alarm and security systems
-
Packing machines
-
Outdoor control
applications
-
Generator control &
maintenance
SG2USB Programming Interface
|
|
|
Machine
automation, monitoring, clock, timer and counter replacement.
|
|
|
| |
