Industrial Wireless Modules


Call    561 210 5061


Panel Mount Ready      ■  Multi-channel selection

Performance
■ 30 dBm High power transmitter
■ 2 Mile (3.km) line-of-sight 938432 ant.
■ Optional long range 5 Miles ( 8 km )
■ Input Dry isolated contact N/O
■ Relay output 6 Amp Class 2


Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■ Panel DIN-35mm rail mount

Dimensions



Applications:
Industrial Monitoring, Pump control, Monitor remote, instruments,
Lighting,  Mobile system, PLC remote, SCADA, Process control
Generators. Remote alarms. Solar, Wire replacement

Specifications

Request a Quotation

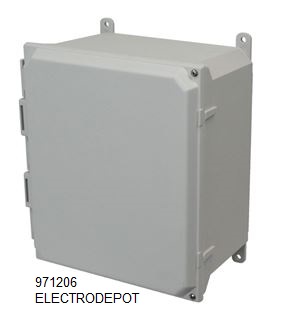

■  Multi-channel selection



■ Fiberglass enclosure
■ Pole or wall mount ready
■ Screw hinged cover
■ Aluminum internal sub panel
■ Two waterproof cable bushings
■ UL/cUL NEMA/CSA 4
■ UL #E345005

    DIMENSIONS



  971206     $189.99

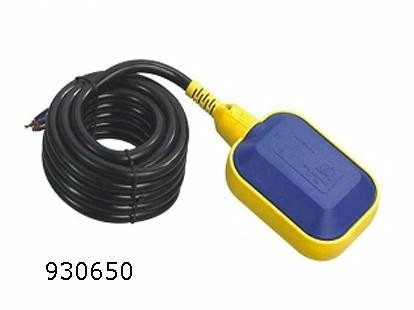

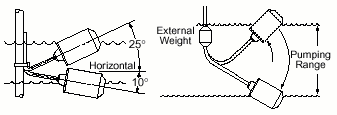

Mechanical Float Switch

  930650     $69.99

   930080 series


  Wireless Control Systems Modules

  Single Channel

Transmitter 12VDC
  Receiver 12VDC


 1 CH  931281  $799.99

  Single Channel

Transmitter 12VDC
  Receiver 120/220Vac

 1 CH  931481  $859.99

  Single Channel

Transmitter 120/220Vac
  Receiver 120/220Vac


 1 CH  932281  $899.99

 Two Channel

  Transmitter 120/220Vac
  Receiver 120/220Vac


 2 CH  932282  $999.99




938432   Yagi antenna 3 E


Gain 7 dBi, 2 Mile (3.km)

433 MHz, Rating: 150 Watts
Impedance 50 ohms  N terminal
Vertical beam 55 degrees -
Horizontal beam 60 degrees
Base Length: 32", Weight: 4.0lb
10 ft coax cable and connector

  938432     $179.99


938091   6" Omni Antenna

0 dBi Short range
5ft coax cable
  SMA

  938091     $19.99



      DISCLAIMER:  Radio control equipment in not to be used in life safety.
      Radio Installations shall be performed by a certified professional.
