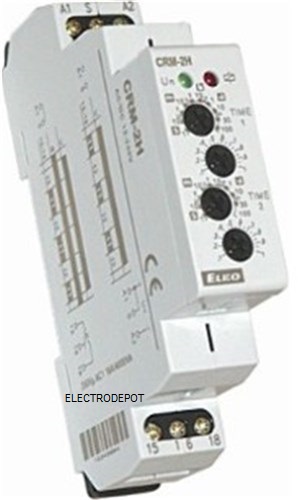

934137
Asymmetric
cyclic timer
2
time functions:
with independent adjustable
switch ON/OFF
Specifications
|
|
|
|
 |
|
|
|
7 Day 24 Hour Timer
DIN rail,
Manual - Auto
SPDT 16A, 250V
Pilot Duty,
Dim: 3.5H, 1.5W, 2.7D inches
3 Year Battery backup,
16 time
schedules
Manual
Application |
|
. |
|
|
|
4 Pole Timer 40A
 |
3 Pole Timer 40A
|
 |
934112
7 Day 24 Hour Timer
DIN rail or panel 110VAC
Relay SPST 25A, 250V
Pilot Duty
16 time
schedules
Manual
3 Year AA Battery backup
Dim: 4.7H, 2.7W, 2.0D inches
110/120VAC |
|
|
|
|
|
|
 |

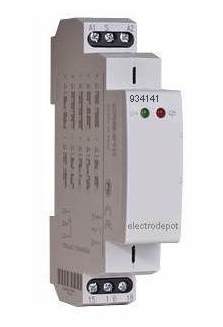

934141 Mechanical
Memory Latching Relay
• Retains status on power failure
• DIN Rail Mount,
• Universal power 12-240VAC/DC,
• AC 3VA, DC 1.2W
• Relay output 16A SPDT, Class 2
Momentary closure of the
terminals A1 and S will latch
the relay. ON
A subsequent momentary closure
will unlatch the relay OFF |
|
 |
H3CA-A
Timer Multi function Digital
0.1 Sec. to 9990 hrs
ON-delay, Repeat cycle,
Interval/OFF-delay,
Multifunction 24V-240VAC |
|
|
|
|
|
Time Clock
|
7-Day 24Hr Electronic Programmable Timer
|
 |
Time Switch
NEMA 4 Indoor
Steel Case -
4 Circuit - SPST - 40 Amps -
120/208/240/277 Volt
Control 120V
ED8215C |
|
|
|
|
|
|
|
|
|
|
