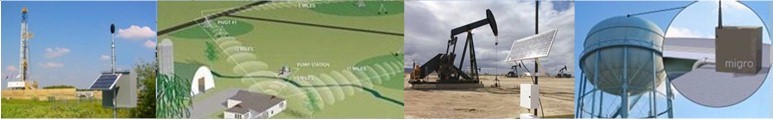

Industrial wireless monitoring and control systems


Miles (3 km)

937202 Control & Monitoring System




Unlimited applications,  Long range control

Six (6) channel wireless control system

System with Portable Transmitter   971215


Miles (8 km)

971210 NEMA4      6 Channel

  Specifications         Request a Quotation


971240 NEMA4X    2 Channel

  Specifications      Request a Quotation

Remote control operation
Gas and oil pipeline alarm
Power monitoring
Perimeter protection
Solar systems monitoring
Remote I/O PLC controller
Long range target control
Avionics and Marine operation
Automatic pump control
Tank level monitoring
Long range alarm systems
Factory automation
Lighting controls
Irrigation System
Traffic Controller
Mobile operation
Wire replacement


10 Miles ( 16 km ) line of sight w Hi-Gain antenna
Encoded system with 65,536 digital 16 bit codes

Simple DIP switch programming setup
System is Solar Ready 12VDC operation
Unlimited transmitter
and receivers can be added
No programming or internet required
27 MHz license free section industrial band

COMPLIANCE: per FCC Part 15.249,  50mV/m @ 3m
Circuit board Compliance with UL796 and UL 94
MIL-STD-461E for Electro-Magnetic Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration

 Transmitter Input: Dry Contact
 Receiver Output:   1 Amp @ 12 VDC Class 2
 Operation frequency: 27 MHz digital encoded, industrial band
 Operating Temperature: -4 to +140 F (-20 to +60 C)
 Housing: weather-resistant NEMA 4 enclosure
 Dimensions: 12"W x10"H x 6"D (300 x 254x 152 mm)
 Operation voltage: 12VDC, 15W 120/220VAC Power supply included
 Power: Transmitter standby >0.001 mA, energized 500 mA ,
 Power draw: Receiver standby 30mA, energized 120mA
 Transmission loop 500 miliseconds
Short pulse transmission comply MIL standard
Special Relays
RF  Components

Coaxial UHF in line, Lighting Arrestor
RF Test equipment

SWR/RF/Field Strength Meter
Coaxial Cable w Connectors

Solar power supply Kit

  Antenna Range Calculator

  DISCLAIMER:  Radio control equipment is not to be used in life safety. Radio control systems are subject to applications, environmental and atmospheric conditions,
   We are not liable of failures on miss applications, radio black outs or interruption of the transmissions.  Radio Installations shall be performed by a certified professional.
