Wireless Controls and Automation

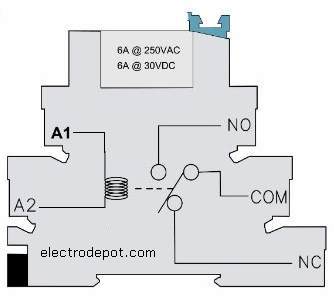

.Power Relay




  Coil 12VDC $39.99

Series 931209

Ultra Slim DIN 0.25" (6mm)


SPDT
Electromechanical Relay,
DIN Rail Mount


Contact: 6A @240V Class 2

Coil Selection:  12, 24VDC,  120VAC
Power consumption 0.3W DC, 1.VA AC


Flag LED Indicator shows relay status

• Silver Alloy, Gold Flashed Contacts

DIN rails

Dimension: 0.25W x 3.0H x 3.5L inches







 934141   $89.99
934141 Mechanical Memory Latching Relay

Retains status on power failure
DIN Rail Mount,
 Universal power supply, Voltage: 12-240VAC/DC,
Max power consumption: AC 3VA, DC 1.2W
Relay output 16A SPDT,240VAC, 30VDC Class 2

Momentary closure of the terminals A1 and S will latch the relay. ON
A subsequent momentary closure will unlatch the relay OFF






 934934  $99.99
934934  12VDC Battery Monitor Relay



Application, Solar panel, Generators, UPS, Medical equipment
Wireless controls long range, Communication Towers

DIN Rail Mount,
Upper/ Lower setting, Voltage: 6 - 30 VDC
Max power consumption: AC 3VA, DC 1.2W
Relay output 16A SPDT, 240VAC, 30VDC Class 2
UL #E308660

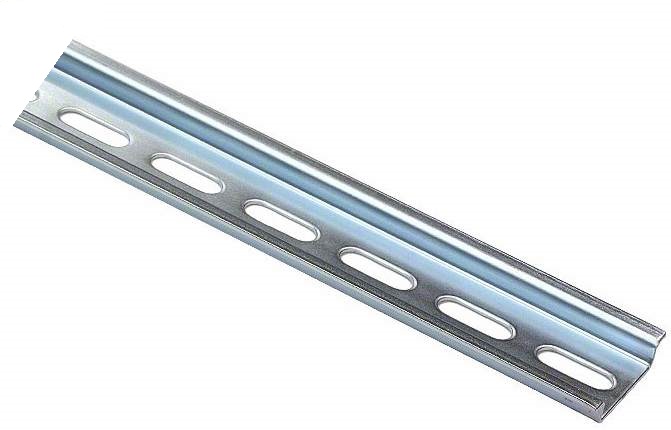

10cm. 4 Inch   DIN  rail 35x75 mm

 DIN rail 10cm (3.98inch)  $2.59




20cm.  8 Inch,  DIN rail 35x75 mm

 DIN rail 20cm (7.87inch) $3.59

DIN Circuit Breaker 10A
  • Single Pole
  • DC voltage: 12,24V
  • AC: 120/277VAC
  • 10 A. Fast acting
  • AC or DC operation
  • 86x77x18mm
  • UL #E218757

 DIN Breaker 10A 1P    $12.79
