Wireless Controls & Automation
  Silent Power & Lighting Contactor

962532   25Amp,  Coil 5-32VDC     $39.95

962512  25Amp,  Coil 90-250VAC    $42.95

964032   40Amp,  Coil 5-32VDC     $42.99

964012   40Amp,  Coil  90-250VAC    $45.99



Single  Pole,  480 VAC Contactors - N/O Contacts

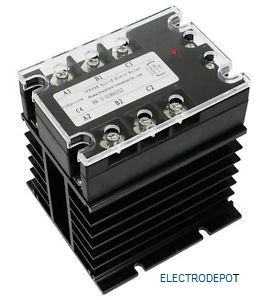

Solid state contactor with heat sink.

Energy saving very low power drain, no moving parts

Quiet operation,
No acoustical noise, No closure click, No vibration

Applications: Studios, Lighting, Heater,  Automation, Harsh environments

FEATURES
  • 40 A. Incandescent or resistive load
  • 32 A. Ballast and General purpose
  • 30 A. Inductive load
  • Power ON LED indicator
  • Normally open (N.O.) contacts
  • Solid Conductor:
     25 mm2  Max torque 0.6 Nm
  • Stranding Conductor:
     16 mm2,  Max torque 0.6 Nm
  • Max switching 1000 switch/hr
  • No humming, No noise, No sound
  • CE approved. IEC 60664-1
  • UL listed

  • Control: 3-32VDC  or  80-240VAC
  • Coil: 3VA inrush, 1VA sealed
  • Power: 120- 480VAC, 40A
  • Electric strength: 4 kV
  • IEC AC Rate:  AC-1;  16 kW,
          AC-3; 11 kW @400V
  • Operating Temperature
          -30+70 C (-22+158 F)
  • Size (Approx.) 52 x 82 x 82 mm /
          2.3" x 3.1" x 3.1" (L*W*T);
  • Screw Dia : 0.4cm / 0.157"
  • Weight : 182g

  • .

    Multi pole

    3 pole

      Absolutely Silent
