Wireless Modules
  Call    561 210 5061
Industrial Wireless Radio Controls
Panel Mount Ready
■ 1 Mile (2.km) line-of-sight 938432 ant.
■ 3 Miles (5 km) line-of-sight 938433 ant.
■ 1200. f (300.m) in-building range 3dbi
■ Input Dry isolated contact N/O
■ Relay output SPDT 6 Amp 240V/30V

Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■ Panel mount or clip onto DIN-35mm rail
 Operation   Transmitter Receiver
 Continuous: Close switch
Open switch
Relay ON
Relay OFF

Industrial Monitoring,
Pump control, Monitor remote
instruments, sensors,
Lighting, Packing and mobile system,
PLC remote, SCADA,
Factory process control
Generators. Remote alarms.
Solar, Wire replacement


Request a Quotation

Wiring Example*

931281 Single (1) Channel  Wiring

Transmitter & Receiver
931282  Two (2) Channel  Wiring

Transmitter & Receiver
931284 Four (4) Channel  Wiring

Transmitter & Receiver
932281 Single (1) Channel  Wiring

Transmitter & Receiver

Wiring example*
932282  Two (2) Channel  Wiring

Transmitter & Receiver 120/220VAC

Optional Battery Back Up System
932284 Four (4) Channel  Wiring
Transmitter & Receiver

Optional Battery Back Up System

   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 0.8 lb (0.40kg)  each unit
Dimensions 4.50 x 3.50 x 3.25 in. /  (114.30 x 88.90 x 86.75 mm)

   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay SPDT  contact 6.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
DIN Rail  IP22, UL94-5VA, DIN mount 35mm or panel mount


   You may Add  a Contactor, Timer, UPS Battery Backup to the DIN rail radio system

     Show system with optional Timer at the receive

930080 series

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.



Antenna Selection ( TWO  are required )

Yagi antenna 3 E

7 dBi  1 Mile+
Length: 18",
Weight: 1.lb
with 10 ft coax cable
and connector

Yagi antenna 12 E

 14 dBi  3 Mile+
 Length: 43",
Weight: 3.lb

 with 10 ft coax cable
 and connector





14" Omni Antenna

3 dBi  2000ft line of sight
10ft coax cable


 7" Omni Antenna

0 dBi Short range
5ft coax cable

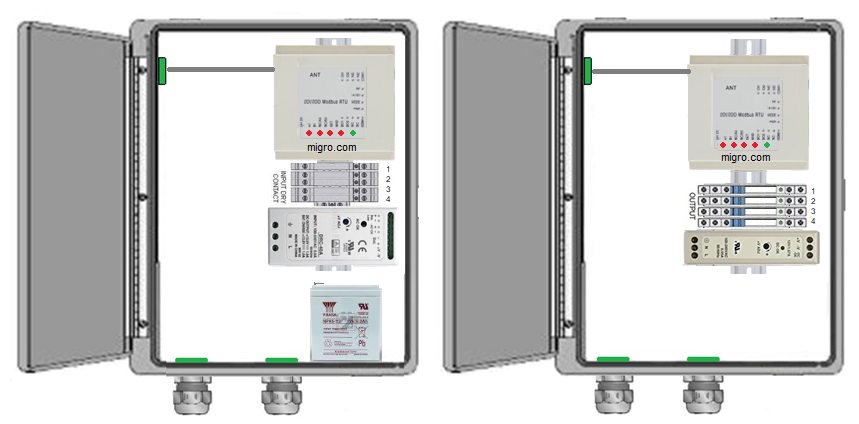

Wireless Radio Controls Modules  with UPS for Battery Backup

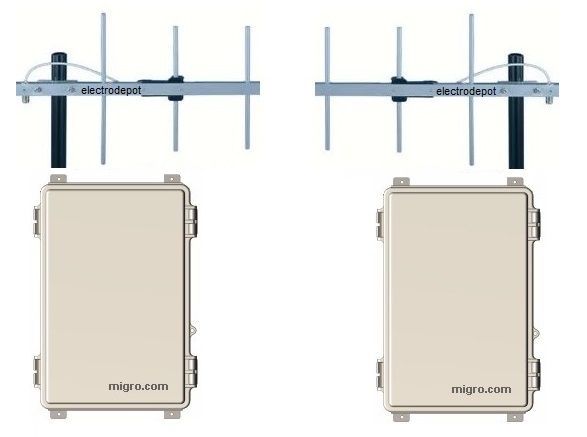

 Optional Enclosure NEMA 4

■ Fiberglass enclosure
■ Pole or wall mount ready
■ Screw hinged cover, with
■ Aluminum internal sub panel
■ UL #E345005
