 Compact Wireless Radio Controls
Performance
•
360m (1200ft)
line-of-sight w 6 inch antenna
• Operation: 120/240VAC or 12VDC
•

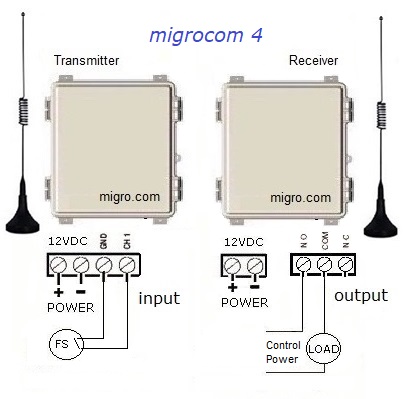

Transmitter input N/O Dry contact
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial
ISM band
• Factory configured systems, Ready to operate
• No setup or programming required
■
Specifications
Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
|
Operation |
Transmitter |
Receiver |
|
Continuous: |
Close switch
Open switch |
Relay ON
Relay OFF |
|
. |
Part
943312 12VDC
Part
943324 24VDC
Part
943327 120/240VAC
■
Request a
Quotation
■
Specifications
■

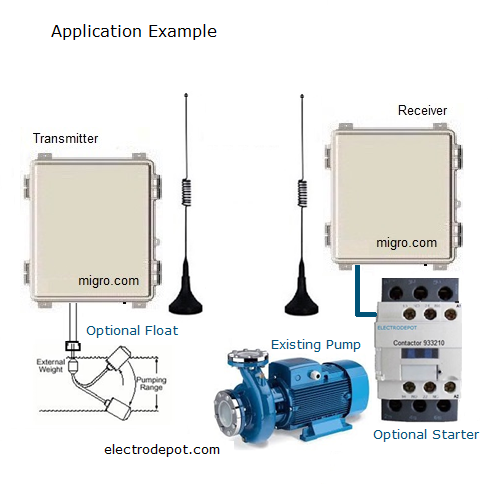

Applications:
Industrial Monitoring
Pump control, Monitor
instruments, sensors
Lighting, Mobile system
PLC remote, Alarms
Factory process control
Generators. Remote alarms.
Solar, Wire replacement |
.
| Supply power |
12 VDC @
400 mA |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Din Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
2.2 lb (1.10kg)
each unit |
| Dimensions |
6.50 x
6.50 x 3.25
in. /
(160.00 x 160.00 x 86.75 mm) |
|
Specifications Digital Receiver
|
| Supply power |
12 VDC @
300 mA |
|
Output |
Relay SPST contact
5.Amp, 30V/240vac
Class 2 pilot duty |
| Frequency |
433 MHz •
License free Industrial ISM band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Components
mounted on 35mm DIN rail |
| Antenna Z |
50 Ohm SMA RF connector |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| DIN Rail |
IP22, UL94-5VA, DIN mount 35mm
or panel mount |
930080 series
Part
943312 12VDC $699.99
Part
943324 24VDC $729.99
Part
943317 120/240VAC $779.99 |
|
|
Antenna Selection (
TWO are required )
|
|
 |
938432 Yagi antenna 3 E
7 dBi
2 Mile+
Length: 18", Weight:
1.lb
with 10 ft coax cable and connector
Antenna Selection |
|
|
 |
938438 Omni directional
antenna
3 dBi 1 Mile+
Length: 37", Weight: 3.lb
with 10 ft coax cable and
connector
Antenna Selection |
|
Accessories:
Contactors |

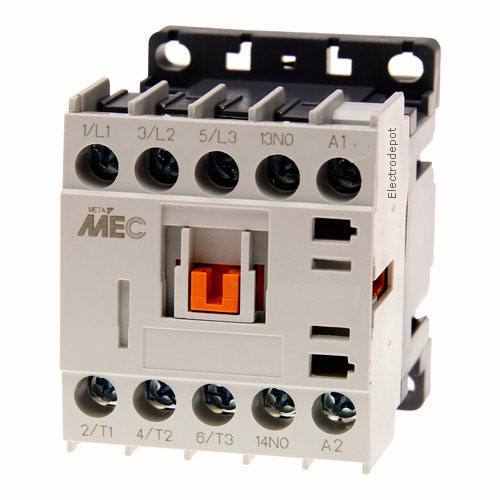

933020
Miniature Contactor
20A, 3 Pole,
12VDC Coil
2HP
@240V, 7.5HP @460V
1HP @120V, 4
KW@ 220V
20Amp AC-1, 12Amp. AC-3
1 N.O. Aux.,
Dimension: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
Surface or DIN rail mountable |
.
|
|
|
|
