Wireless controls i o bidirectional two way radio control

Wireless Controls and Automation

Wireless Links I/O Point-to-Point Monitoring and Control

MigroŽ Bidirectional - Two Way
.

No parameterization nor programming required

No Internet, Transparent I/O System

No Third party cell, No monthly fees

You have full control over your own carrier

Power system 12/24VDC solar ready

Real time status feedback from the remote site

Fast installation and easy setup

■ 2 Miles (3.km) line-of-sight with Yagi 7 dBi antenna
■ Optional Extended range 20km+
■ Full duplex bidirectional transmission

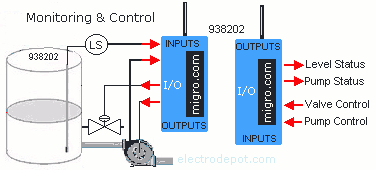

Applications: Field operations, irrigation, PLC remote i/o, lighting, process, pumps, generators, solar systems, water management, plantations, remote monitoring, mobile, security, robots, conveyor control, traffic control, test and research equipment, industrial process, plc extension, wire replacement, alarm annunciator, hazardous area remotes.

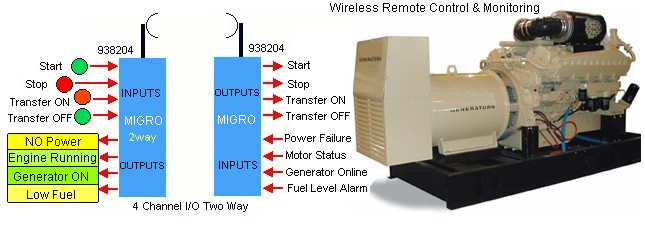

938204

Bidirectional Wireless 4 Channel I/O Digital

■ Set with Master & Slave Modules

Each Module with:
■ 4 Digital inputs, N/O Dry Contact,
■ 4 Relay outputs SPST 5A, 240V Pilot duty class 2
■ Operation in 12 or 24 VDC   or 120/240VAC
■ NEMA4 Enclosure           Specifications

938208

Bidirectional Wireless 8 Channel I/O Digital

■ Set with Master & Slave   Modules

Each Module with:
■ 8 Digital inputs, N/O Dry Contact,
■ 8 Relay outputs SPST 5A, 240V Pilot duty class 2
■ Operation in 12 or 24 VDC    or 120/240VAC
■ NEMA4 Enclosure                Specifications

Antenna Selection ( TWO are required )

938433 Yagi antenna
12 Element

433MHz, 14 dBi 5 Mile+
Impedance 50 ohms N terminal
Length: 43", Weight: 3.lb
10Ft Coax Cable w Connectors included

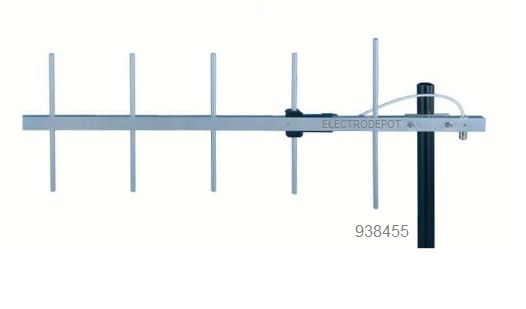

938455
5 Element Beam Yagi Antenna

433 MHz, Gain: 9 dBi   3 Mile+
Rating: 150 Watts
Impedance 50 ohms N terminal
Vertical   55 degrees, Horizontal 60 degrees
With N female termination
Base Length: 32", Weight: 4.0lb
10Ft Coax Cable w Connectors included


938432   Yagi antenna 3 E

433MHz, 7 dBi 1 Mile+
Impedance 50 ohms N terminal
Length: 18", Weight: 1.lb
10Ft Coax Cable w Connectors included



Omni base antenna 938450

433 MHz, Gain: 5 dBi Rating: 250 Watts
Impedance 50 ohms N terminal
Vertical beam 45 degrees With N female termination
Length: 34", Weight: 3.0lb

10Ft Coax Cable w Connectors included

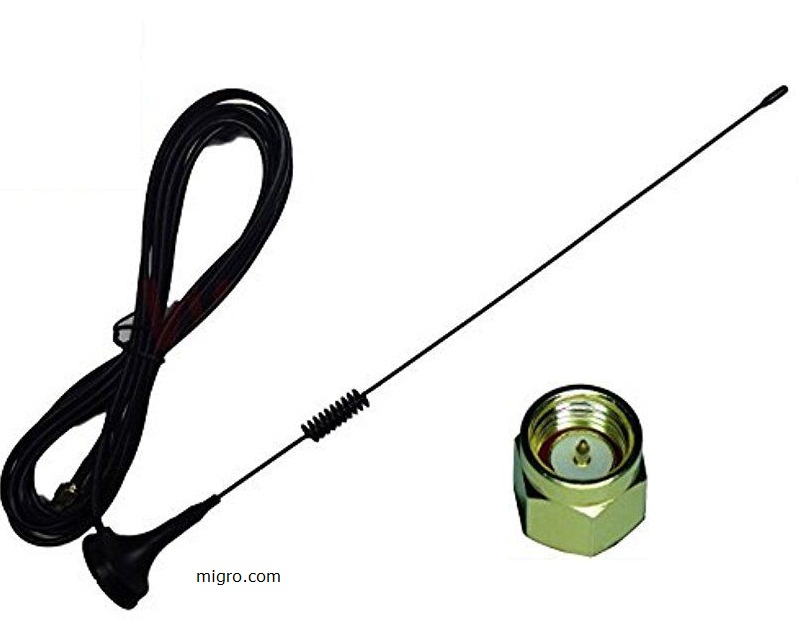

938092
938092

14" Omni Antenna

433 MHz, 3 dBi  short range line of sight
10ft coax mini cable SMA

Specifications

Digital Input / Output
Supply power	12 VDC ą10% @ 600 mA
Inputs	N/O Normally open digital dry contact
Outputs	Relay contact 5Amp SPST 240V Pilot duty
Output Mode	Normal or Retain status
Ambient temp	14° to 140° F (-10° to 60° C)
Ambient RH	5% to 95% RH non condensing
Connection	Terminal screws DIN
Response	500 msec full duplex
Weight	5.2 lb (2.40kg) each unit, 2 and 4 channel
Dimensions w optional NEMA4 Enclosure	12"W x 10"H x 6"D (300 x 240 x 150 mm)

Radio System
Frequency	433 MHz license free industrial
Receiver	Digital 16 bit, sensitivity -110 dBm
Configuration	DIP switch
Data rate	19.2 KBPS Encoded
Antenna external	50 Ohm (optional)
Compliance	FCC CFR part 15.247 ISM
Digital Transmission	Gaussian_frequency-shift_keying
Transmitter channels	16 addresses per system
Transmitter power	per FCC Part 15.249, 50mV/m @ 3m
Enclosure Selection	NEMA4 selection: Fiber or Metal.

■ Transmission range calculator

DISCLAIMER: Radio control equipment in not to be used in life safety. Radio control systems are subject to applications, environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs or interruption of the transmissions. Radio Installations shall be performed by a certified professional.
