 Wireless Single (1) Channel Remote Digital Controller

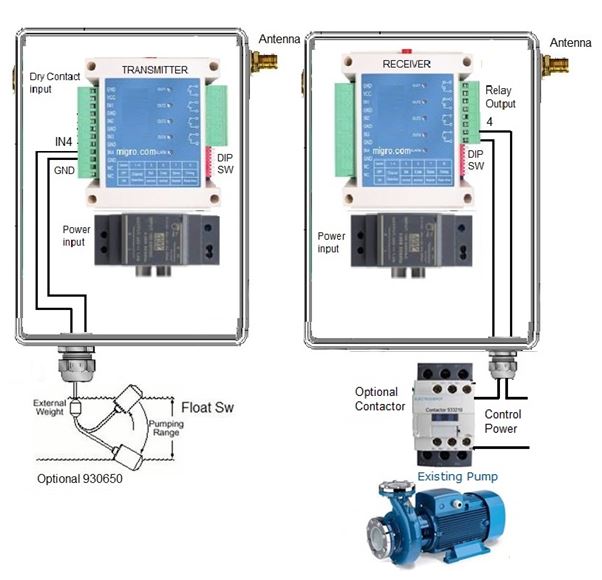

 Base Wireless Kit  Wiring   example

Base   938511   Special order
Please Request latest price


Same specifications as 938511 including,
Solar power and special transmitter enclosure

Base w Solar System   938521 Special order
Please Request latest price

  2 Miles ( 3 km ) line of sight
  Optional extended range up to 10 Miles (16Km)

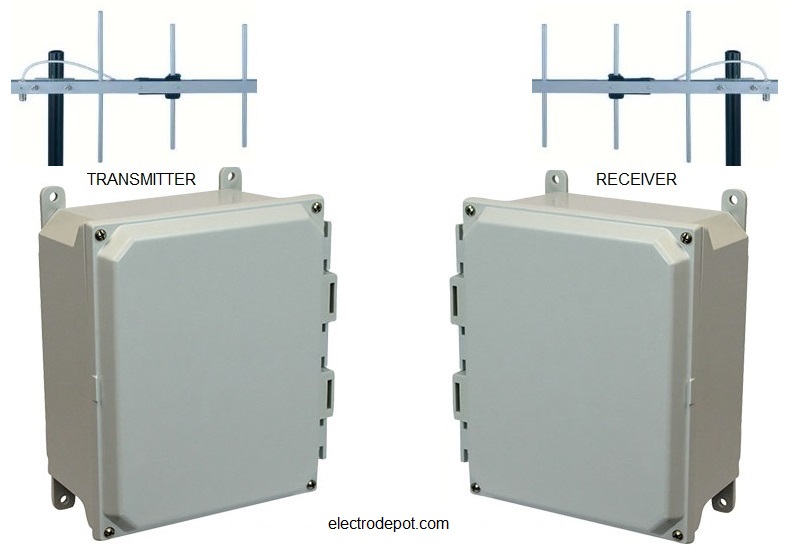

  Transmitter & Receiver easy to install components:

1  Base Transmitter with power monitoring module, dry contact input
1  Base Receiver with relay output
2 Yagi Antenna 3 Element with coaxial  cable & connector
2  NEMA 4 metallic enclosure for wall  mount


Operating Voltage: 12 VDC
Operating Temperature: -4 to +140 F (-20 to +60 C)
Number of Codes: 4096 codes, DIP switch programming
Carrier Frequency 433 MHz , 16 BIT Digital
Current Transmitter Standby 40mA  transmitting  400 mA
Current  Receiver Standby  40 mA, operation, 250 mA
Data Input TX  Dry contact   N/O:  normally open
Relay Output 10 Amp max  250VAC N/O and N/C
Antenna Impedance 50 Ohms, Antenna optional
Transmitting  Mode Continuous supervised
Receiver & transmitter 938511  9.5  x 7.5 x 3.5 inch  (240 x 190 x 90 mm) ea
Enclosure rating NEMA 4,   IP65 metallic waterproof
Compliance per FCC Part 15.249,  50mV/m @ 3m

Continuous monitoring module, automatically turns OFF
     the system on carrier or power failure


 ACTION  Transmitter    :    Receiver
Continuous: Close switch:
Release switch
 Turn ON,
 Turn OFF



Base w Solar Transmitter System   938521

Transmitter panel size 14 x 12 x 8 inches
Incorporates in the  NEMA 4 enclosure  with space for a deep cycle battery ( not supplied ) for up to 100 Ah


 Optional Accessories


DISCLAIMER:  Contact a licensed professional for your project.
